Getting started with your
XPPen Artist Pro 16TP Pen Display.
- XPPen Artist Pro 16 TP has an active area of 15.6 inches allowing you to express your creativity.
- The XPPEN Artist Pro 16TP comes with 4K resolution (3840 x 2160), which introduces you to a whole new world of visual detail and clarity. It will bring all your creations to life like never before!
- With 92% Adobe RGB, 124% sRGB in color gamut and a 1000:1 contrast ratio, the XPPEN Artist Pro 16TP delivers natural color transition, super color accuracy and saturation.
- In Windows, the Artist Pro 16TP features a perfect combination of multi-touch control and pen function. You can easily zoom in and out, rotate your canvas and navigate more freely with your fingers while drawing with a stylus. The creative experience is now profoundly immersive and responsive.
- The Artist Pro 16TP offers a perfect balance between "Non-grainy" and "Anti-glare", providing a solution to one of the key technical problems in the industry. By reducing the AG glass’s surface roughness, narrowing particle spacing, and preventing convex lens amplification effect, this pen display delivers a stunning visual experience with neither grainy dots nor reflection interference. Relieve eye fatigue and release your creativity with ease.
- It also comes with full lamination technology which is applied seamlessly to combine the glass with the screen, which optimizes cursor positioning and minimizes parallax, offering a totally natural way to draw and create.
- The PH2 stylus has an eraser at one end, enabling you to instantly modify or remove unwanted marks without having to switch between settings. Supporting up to 60 degrees of tilt action and with 8192 pressure sensitivity levels allows you to create exquisite lines and seamless shading.
- The streamlined design push-push pen case provides quick access to keep your pen and pen nibs safe. Take it with you wherever you go.
- The XPPen Artist Pro 16TP has two full-featured USB-C ports that can be easily connected, supporting a USB-C to USB-C connection, giving you a tidy desktop and more connection options. The extra security slot at the side also allows you to protect your display.
- Artist Pro 16TP is compatible with Windows 7/8/10, Mac OS X 10.10 (or later), Chrome OS 88 (or later), and Android (USB3.1 DP1.2) List of compatible Android devices. One can use the tablet with all the popular digital art software, such as Adobe Photoshop, Illustrator, SAI, CDR, GIMP, Krita, Medibang, Fire Alpaca, CLO, and Blender 3D.
Details
4K Ultimate Visual Experience
With 4K resolution (3840 x 2160), the XPPen Artist Pro 16TP introduces you to a whole new world of visual detail and clarity. It will bring all your creations to life like never before!
The Most Natural Colors
With 92% Adobe RGB, 124% sRGB in color gamut and a 1000:1 contrast ratio, the XPPen Artist Pro 16TP delivers natural color transition, super color accuracy and saturation.
Multi-touch Brings Immersion
In Windows, the Artist Pro 16TP features a perfect combination of multi-touch control and pen function. You can easily zoom in and out, rotate your canvas and navigate more freely with your fingers while drawing with a stylus. The creative experience is now profoundly immersive and responsive.
Compatibility list of other systems >>
Zoom in
Zoom out
Rotate
Incredibly Innovative, Extremely Comfortable
The Artist Pro 16TP offers a perfect balance between "Non-grainy" and "Anti-glare", providing a solution to one of the key technical problems in the industry. By reducing the AG glass’s surface roughness, narrowing particle spacing, and preventing convex lens amplification effect, this pen display delivers a stunning visual experience with neither grainy dots nor reflection interference. Relieve eye fatigue and release your creativity with ease.
Conventional Anti-glare glass
Anti-glare, Grainy
Artist Pro 16TP’s Anti-glare glass
Anti-glare, Non-grainy
Grainy
Non-grainy
GlassDisplayCombining eye strain relief technology with an anti-glare glass screen minimizes visual interference from your surroundings, ensuring a gentler image presentation and reducing eye fatigue.
GlassDisplayFull lamination technology is applied to seamlessly combine the glass with the screen, which optimizes cursor positioning and minimizes parallax, offering a totally natural way to draw and create.
Pick Up the Pen and Be Inspired
The PH2 stylus has an eraser at one end, enabling you to instantly modify or remove unwanted marks without having to switch between settings. Supporting up to 60 degrees of tilt action and with 8192 pressure sensitivity levels allows you to create exquisite lines and seamless shading.
Digital eraser
8192 levelspressure sensitivity
60° Tilt
60° tilt functionSimplicity Meets Functionality
The streamlined design push-push pen case provides quick access to keep your pen and pen nibs safe. Take it with you wherever you go.
A New Level of Professionalism
The Artist Pro 16TP has two full-featured USB-C ports that can be easily connected, supporting a USB-C to USB-C connection, giving you a tidy desktop and more connection options. The extra security slot at the side also allows you to protect your display.
* Some old model laptops or desktops need to be connected via an HDMI cable.
* Supports USB-C DC 5V/300mA output, allowing for easy connection to Nintendo Switch.
Security slot
Contemporary Good Design Award
Contemporary Good Design Award, abbreviated as CGD, is an international design award organized by Red Dot.
CGD is the indication of outstanding designs.
The Story Behind
The dreamlike jungle is bathed in the golden sun, and the living creatures wander among the colorful flowers.
The jungle is beautiful yet dangerous: the ancient trees by the river appear to be battle-hardened.
The small cat sees the reflection of a strong tiger in the clear water–the image of the true self,
deep in the soul. Everyone has their journey, full of surprises and adventures. Only when we are honest with ourselves can we be as strong as a tiger and always follow dreams full of courage and passion.

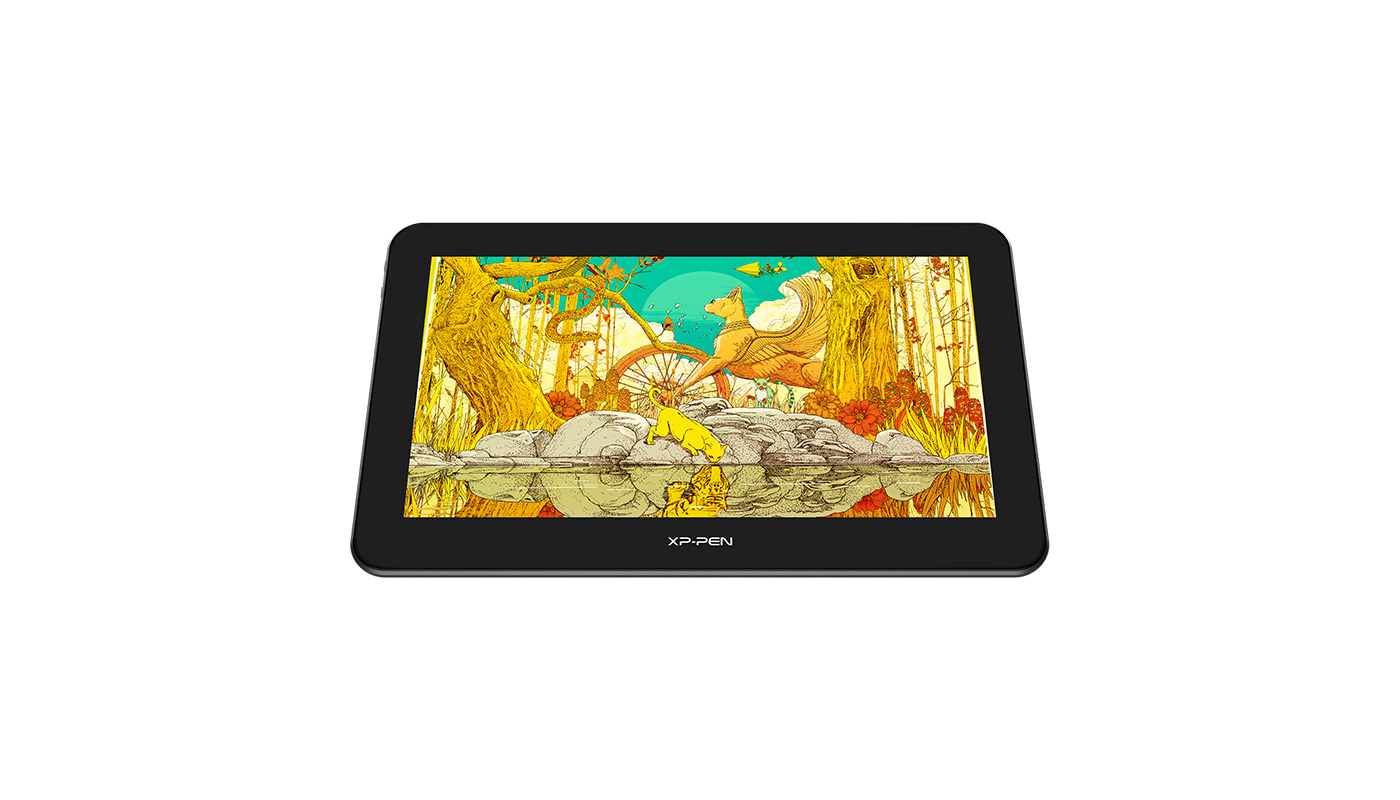

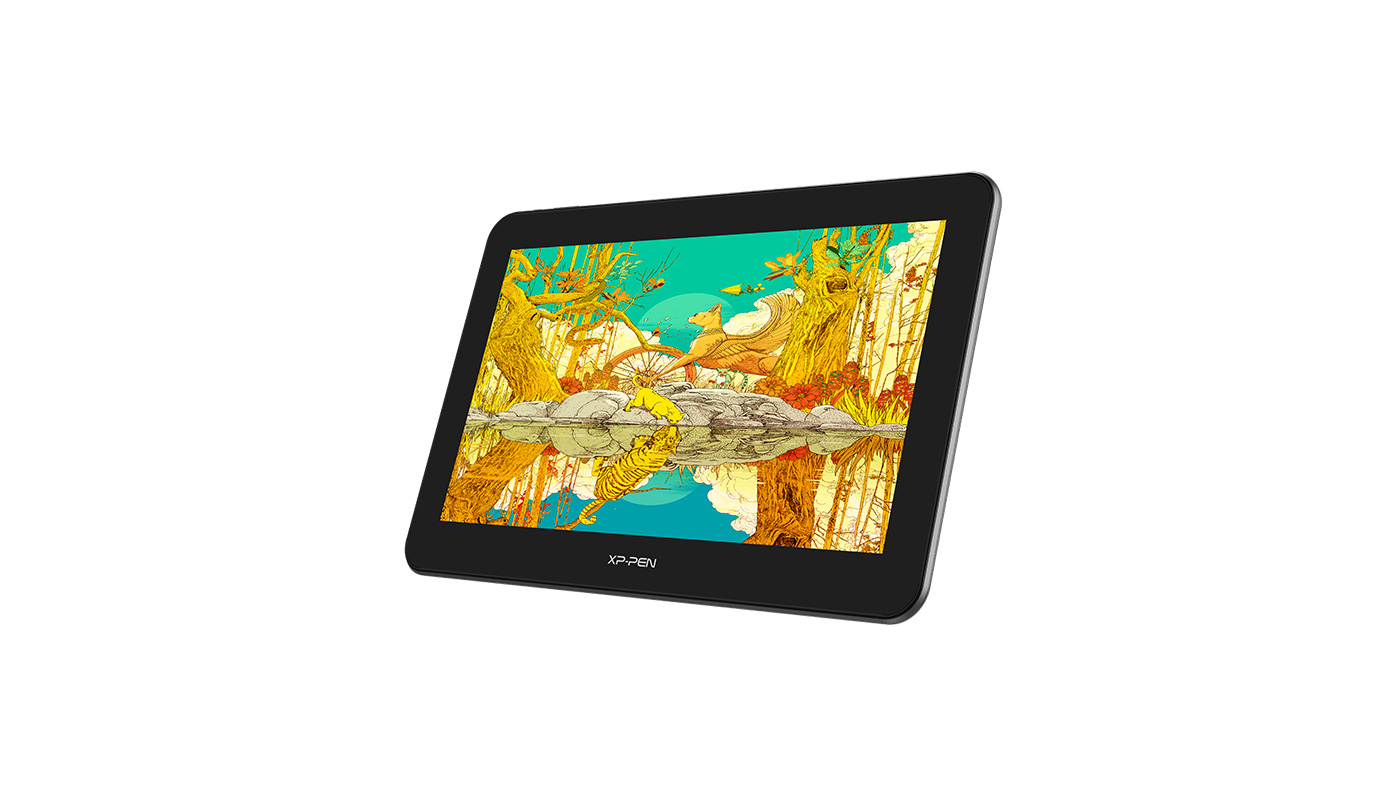

Product Gallery
Specifications
DIM. 406.4 x 263.1 x 15.4mm
3840 x 2160 (UHD)
Multi-touch Screen
92% Adobe RGB, 88% NTSC 124% sRGB
Windows / Mac / Android / Chrome OS
Grainy vs Non-grainy
Fully Laminated Display
8192 Levels
60° Tilt
2 x USB-C
Show more
| Compatibility list of other systems | |||
| Mode Switch | |||
 |  |  | |
| System | Turn off Touch function | Turn on Pen Priority mode | Turn on both Pen and Touch functions |
| Windows | Support | Support | Support |
| Mac | Support | Support | Not supported |
| Android (List of compatible Android devices) | Support | Support | Not supported |
| Touch Gesture | |||
| Single-finger | Two-finger | Multi-finger | |
| Windows | Support | Support | Not supported |
| Mac | Support | Not supported | Support |
| Android | Support | Support | Not supported |
| Compatibility list of other systems | |||
| Mode Switch | |||
| Turn off Touch function | Windows: support Mac: support Android (List of compatible Android devices): support | ||
| Turn on Pen Priority mode | Windows: support Mac: support Android (List of compatible Android devices): support | ||
| Turn on both Pen and Touch functions | Windows: support Mac: not supported Android (List of compatible Android devices): not supported | ||
| Touch Gesture | |||
| Single-finger | Windows: support Mac: support Android: support | ||
| Two-finger | Windows: support Mac: not supported Android: support | ||
| Multi-finger | Windows: not supported Mac: support Android: not supported | ||
| List of compatible Android devices | |
| HUAWEI Mate 10 | Samsung Galaxy Note8 |
| HUAWEI Mate 10 Pro | Samsung Galaxy Note9 |
| HUAWEI Mate 20 | Samsung Galaxy Note10 |
| HUAWEI Mate 20 Pro | Samsung Galaxy Note10+ 5G |
| HUAWEI Mate 20 X | Samsung Galaxy S8 |
| HUAWEI Mate 30 | Samsung Galaxy S8+ |
| HUAWEI Mate 30 Pro | Samsung Galaxy S9 |
| HUAWEI Mate 40 | Samsung Galaxy S9+ |
| HUAWEI Mate 40 Pro | Samsung Galaxy S10+ |
| HUAWEI Mate 30E Pro 5G | Samsung Galaxy S10e |
| HUAWEI P20 | Samsung Galaxy S10 5G |
| HUAWEI P20 Pro | Samsung Galaxy S20+ |
| HUAWEI P30 | Samsung Galaxy S20 Ultra 5G |
| HUAWEI P30 Pro | Samsung Galaxy S20 FE 5G |
| HUAWEI P40 | Samsung Galaxy S20 5G |
| HUAWEI P40 Pro | Samsung Galaxy Tab S5e |
| HUAWEI P40 Pro+ | Samsung Galaxy A90 5G |
| Honor V20 | |
| Honor 30 Pro+ | |
Video
Video
Specifications
Specifications
| Product Name | Artist Pro 16TP |
| Product Model | MD160U |
| Dimensions | 406.4 x 263.1 x 15.4mm |
| Display Area | 345.6 x 194.4mm/13.6＂x 7.6＂ |
| Display Resolution | 3840 x 2160 (UHD) |
| Color Gamut (typical) | 92% Adobe RGB, 88% NTSC, 124% sRGB |
| Stylus | Battery-free |
| Tilt | 60° |
| Pressure Levels | 8192 |
| Contrast | 1000:1 |
| Resolution | 5080LPI |
| Reading Height | 10mm |
| Report Rate | ≥ 220RPS |
| Accuracy | ±0.5mm (center), ±1.5mm (corner) |
| Ports Included | 2 x USB-C |
| Viewing Angle | 178° |
| Aspect Ratio | 16:9 |
| Multi-touch Screen | Yes |
| Anti-glare Glass | Yes |
| Fully Laminated Display | Yes |
| Security Slot | Yes |
| Power Supply Input | AC 110-240V |
| Power Supply Output | DC 12V/1.5A (max) |
| Compatibility | Windows 7/8/10 Mac OS X 10.10 (or later) Chrome OS 88 (or later) Android (USB3.1 DP1.2) List of compatible Android devices Popular digital art software, such as Adobe Photoshop, Illustrator, SAI, CDR, GIMP, Krita, Medibang, Fire Alpaca, CLO, and Blender 3D |
| Certifications | CE/RoHs/WEEE/FCC/PSE/KC/BIS/EAC/NOM/RCM |
Package Contents
Package Contents
- 1 x 15.6＂Pen Display
- 1 x Battery-Free Stylus
- 1 x Pen Case (comes with 9 pen nibs)
- 2 x USB-C to USB-C Cable
- 1 x 2-in-1 Cable
- 1 x Power Adapter
- 1 x Quick Guide
- 1 x Cleaning Cloth
- 1 x Black Drawing Glove
